Shelter Anthea with sides walls

Anthea shelter - with side walls

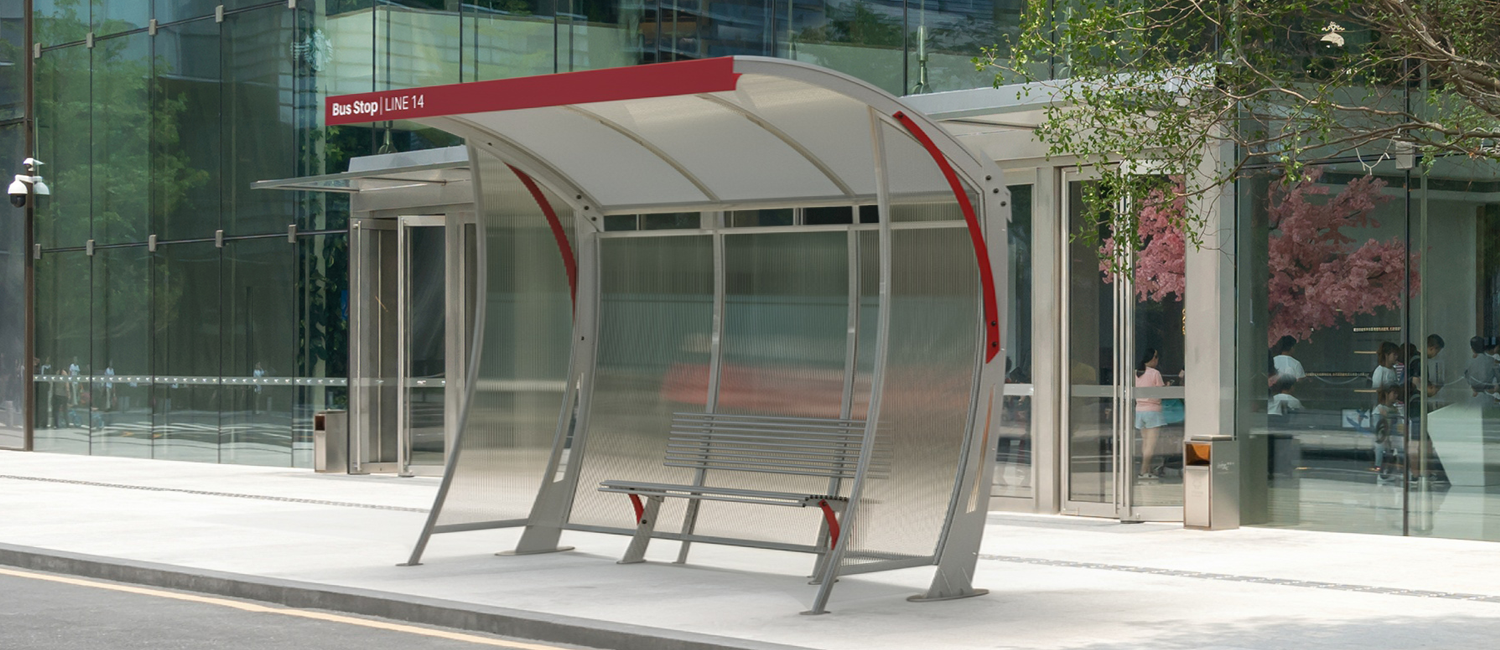

The Anthea shelter with side walls is an elegant addition to urban spaces, designed to provide shelter at bus stops.

Creative design and advanced functionality

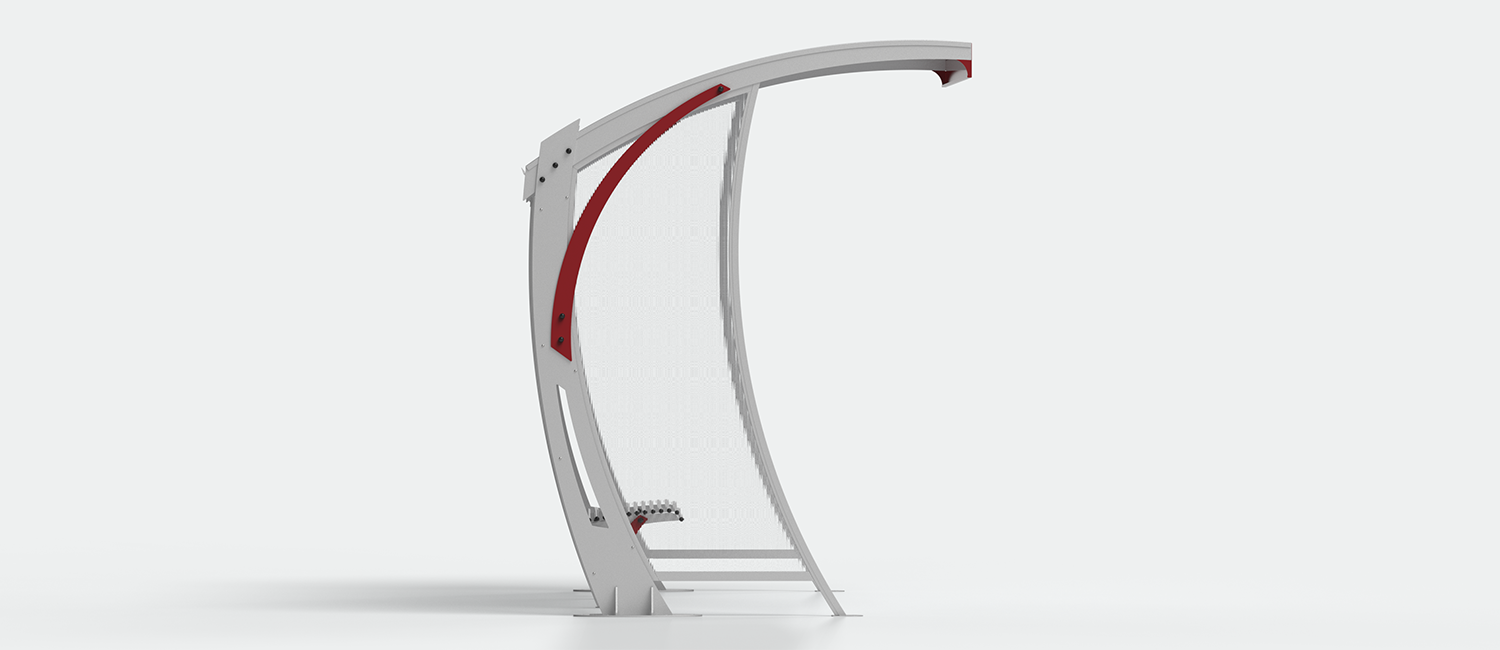

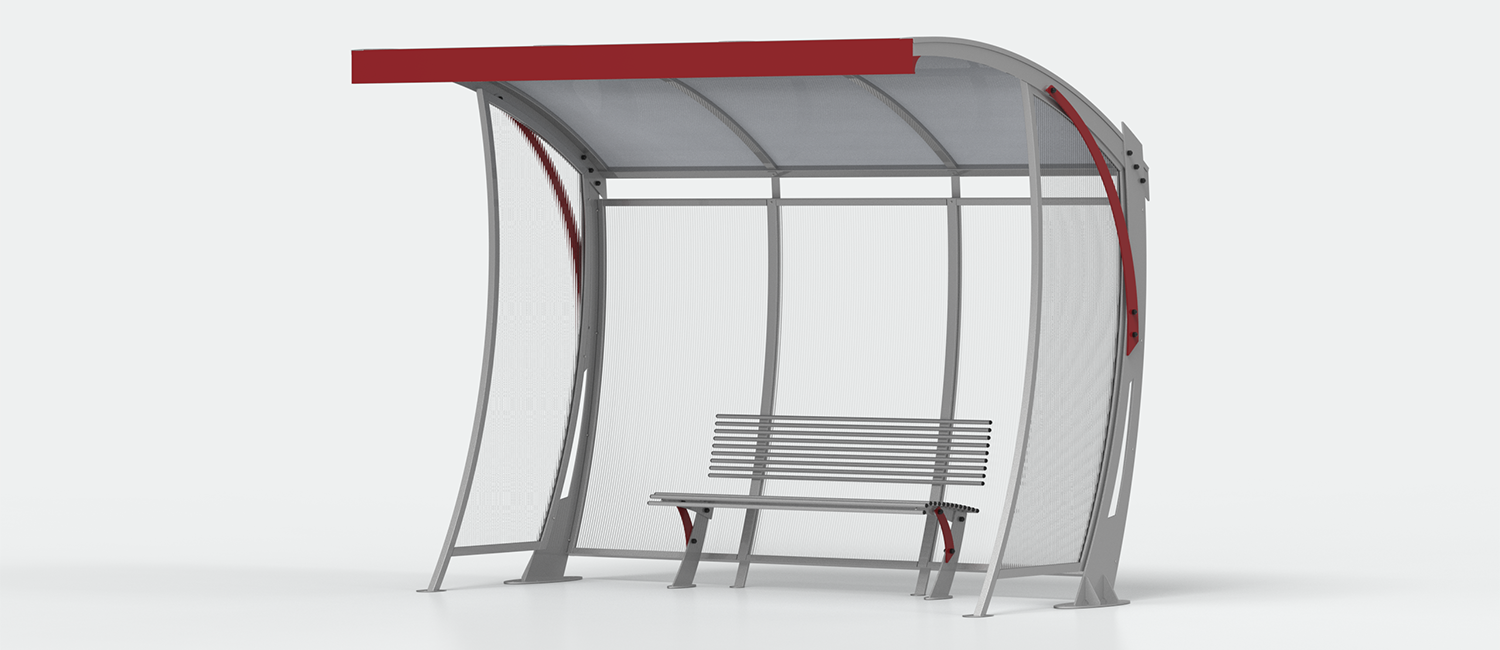

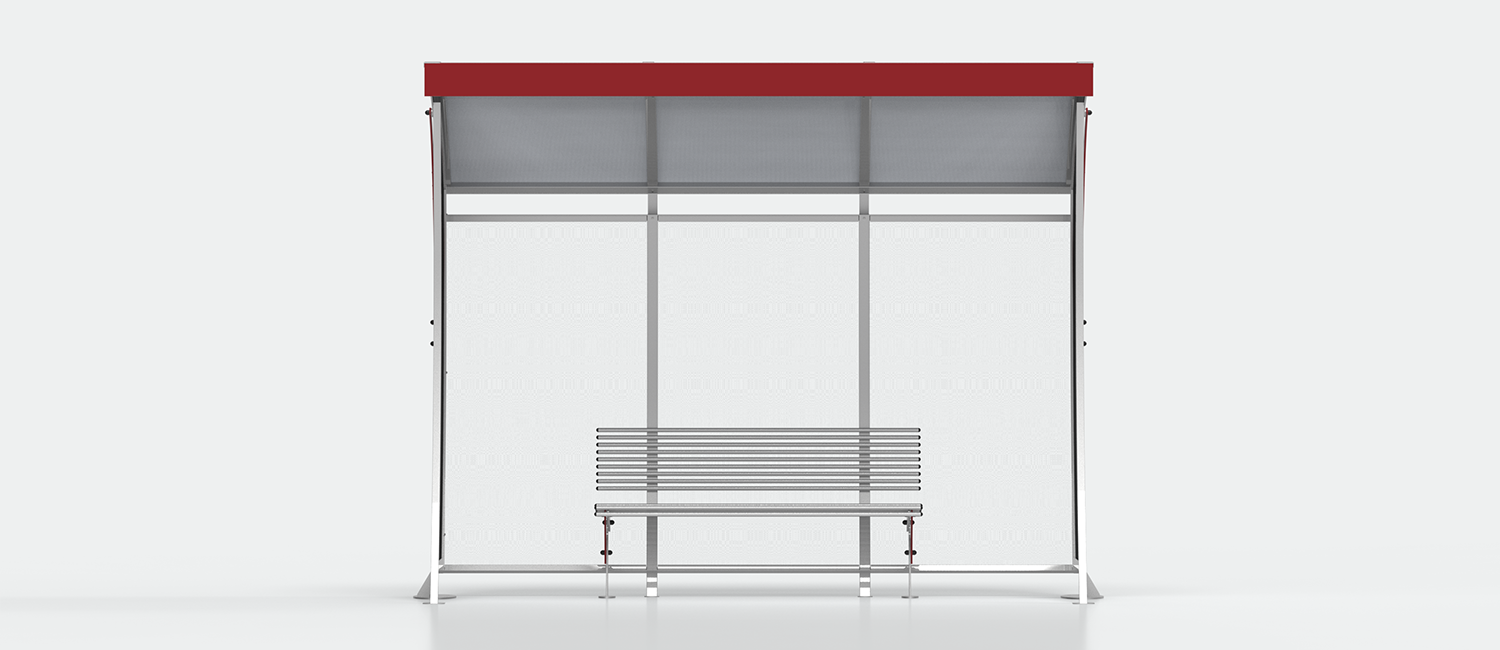

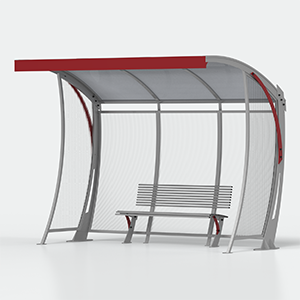

Consisting of N. 2 vertical load-bearing structures, arched in shape, made of galvanized sheet metal obtained by high definition plasma cutting; on both uprights are obtained from stylised emptyings. N. 2 ellipsoidal base plates made of galvanized sheet metal provided with circular holes for fixing to the concrete foundation. Stiffening triangles welded between the base plate and the load-bearing structures, in galvanized sheet metal. Covering frame consisting of N. 2 arches in galvanized sheet metal; both arches are connected and made integral with each other by means of a frame in rectangular galvanized steel profiles. Opaque honeycomb polycarbonate roofing, removable band, in the front part of the roofing, in galvanized sheet metal to affix the possible name of the stop. In the rear part, gutter for collecting and draining rainwater. No. 2 connecting arches between the vertical uprights and the roof made of galvanized sheet metal. Side walls made of an arched perimeter frame, in rectangular galvanized steel tube and galvanized profile. Transparent honeycomb polycarbonate, supported by a frame in rectangular galvanized steel tube and galvanized profile. Back wall made of an arched perimeter frame, in galvanized steel angular profile with No. 2 vertical uprights shaped in the external part in rectangular galvanized steel tube. Transparent honeycomb polycarbonate supported by profiles in rectangular galvanized steel tube.

Technical characteristics
  •  Bench: Bench consisting of N. 2 supports harmonized with the vertical uprights in galvanized sheet metal obtained from high definition laser cutting. Both supports are characterized by the presence of decorative hollowing. N. 2 base plates welded to the supports, made of galvanized sheet metal; both plates are provided with circular holes for fixing to the ground. N. 2 arches for connecting the supports to the seat in galvanized sheet metal. Backrest made with N. 9 profiles in galvanized steel round tube complete with PVC end caps with spherical heads.
  • Safe Anchoring: Designed for fixing via brackets and template, preventing tipping and unwanted movements.


Customization and Resistance for every environment
To adapt to different aesthetic needs, the shelter is available in the basic finish "bright aluminum" for the structure and "ruby red RAL 3003" for the arches, band and bench. Furthermore, upon request it is possible to request customized colors and finishes to integrate the shelter perfectly into the surrounding environment. The structure, made of galvanized steel and painted with thermosetting powders, guarantees high resistance to atmospheric agents and a long life over time.

Request more information
To discover all the technical details of the product, you can download the detailed technical sheet.

The Anthea shelter with side walls is also available on the "acquistinretepa - MEPA" portal by searching for the code DIMCAR277-BIS "in product codes"

If you would like a personalized quote or a custom finish, contact us today!

You can find the Anthea shelter in the following versions:
Code 277: Anthea cantilever shelter.
Code 277-BIS: Anthea shelter with side walls.
